Technical specifications

Frame Cast aluminium alloy
Weight 120 kg / 290 lbs
Backrest thickness 20 mm / 0.80 in.
Swivel ±90°, total 180°
Mounting To be fixed to the floor
Mobile version as an option
Electrical data One main printed circuit board, integrated microprocessor control
Colour White (RAL 9016)

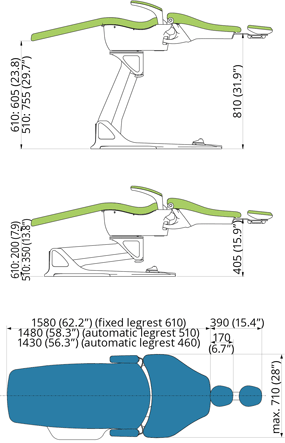

Dimensions

Chair Drawing of dimensions

Movements

Chair Drawing of movements

The fixed legrest has optimum knee angulation.

Chair Drawing of movements

The emergency position reached with the toes to nose legrest is useful in situations when it is necessary to increase blood irrigation to the brain.

Chair Drawing of movements

The optional automatic legrest can be used when the chair is swivelled 90° to the right or left.
