True all-in-one units for all your imaging needs.


Meet the Planmeca ProMax® 3D family

Planmeca ProMax® 3D is a product family consisting of exceptional all-in-one units.
With three different types of three-dimensional imaging – as well as panoramic, extraoral bitewing and cephalometric imaging –
these intelligent products can meet all your maxillofacial imaging needs.

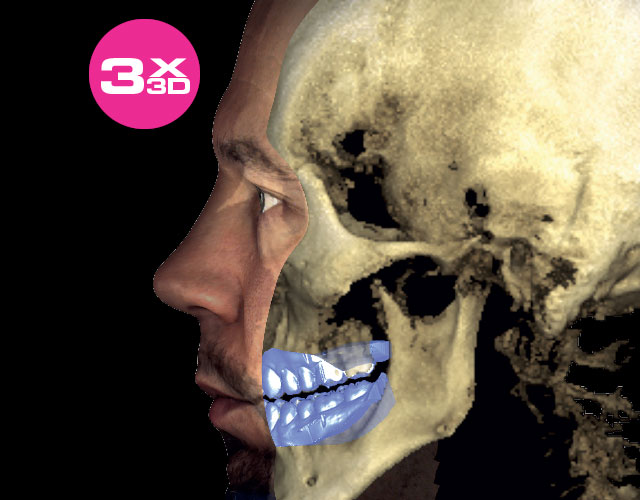

Unique 3D combination – an industry first


We’re the first company to combine three different types of 3D data with one X-ray unit. The Planmeca ProMax® 3D family brings together a Cone Beam Computed Tomography (CBCT) image, 3D face photo and 3D model scan into one 3D image – using the same advanced software. This 3D combination creates a virtual patient in 3D, helping you with all   your clinical needs.







Pioneering Planmeca Ultra Low Dose™ protocol. An even lower patient dose than in panoramic imaging

Planmeca ProMax® 3D units offer a unique Planmeca Ultra Low Dose™ imaging protocol, enabling CBCT imaging with an even lower patient radiation dose than standard 2D panoramic imaging. This pioneering imaging protocol is based on intelligent 3D algorithms developed by Planmeca and offers a vast amount of detailed anatomical information at a very low patient dose.
Read more on scientific studies on effective dose.


Ultra low dose images are ideal for many clinical cases, such as:

  • Postoperative and follow-up studies in maxillofacial surgery
  • Orthodontics: Localisation of unerupted or impacted teeth, Detection of facial asymmetries, Defining orthodontic landmarks for cephalometric analysis
  • ENT studies: Sinus imaging, Airways measurements
  • Implant planning

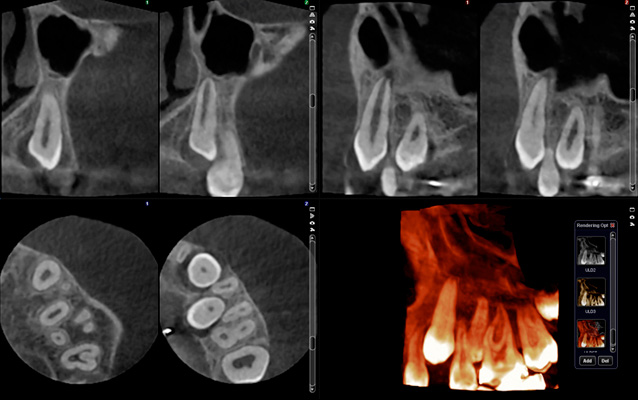

Planmeca Ultra Low Dose

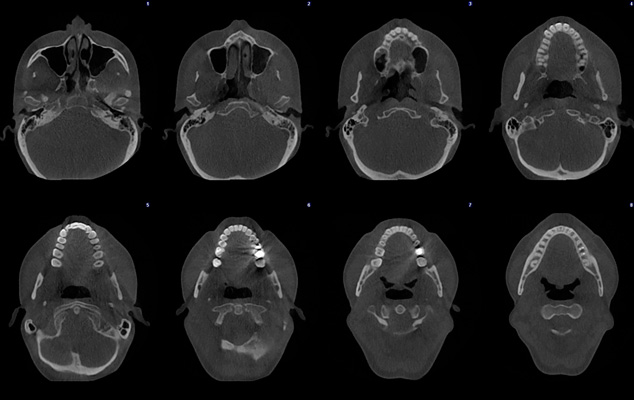

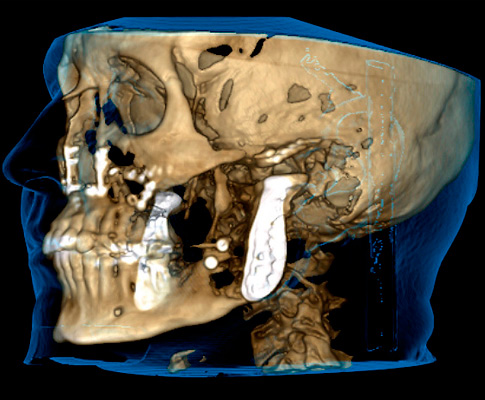

Ultra Low dose image - Full skull
Planmeca ProMax 3D Mid - FOV Ø 200 x 170 mm. - Voxel size 300 µm / 600 µm - Effective patient dose 14.7 µSv

Planmeca Ultra Low DoseUltra low dose image - Full skull
Planmeca ProMax 3D Mid - FOV Ø 200 x 170 mm. - Voxel size 300 µm / 600 µm - Effective patient dose 14.7 µSv

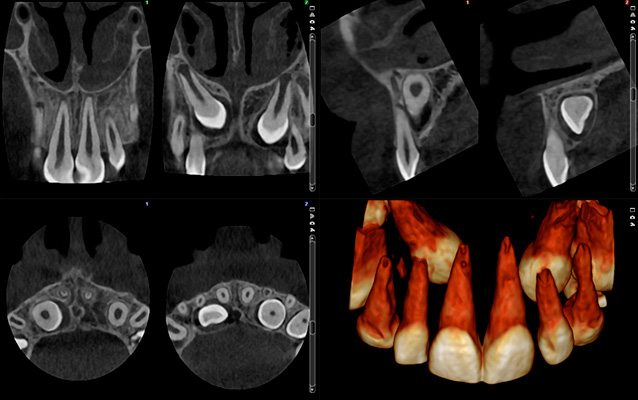

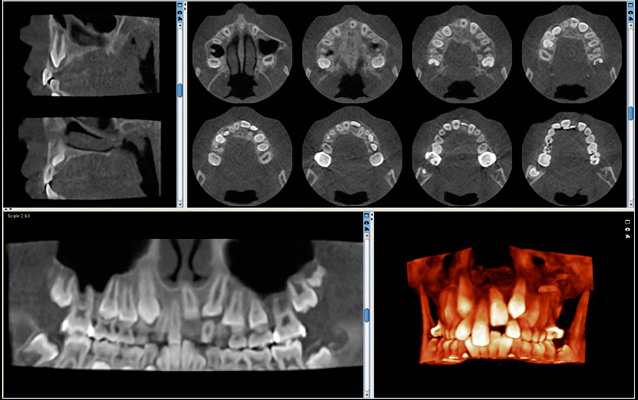

Planmeca Ultra Low DoseUltra low dose image - Orthodontic case
Planmeca ProMax 3D Classic - FOV Ø 40 x 50 mm. - Voxel size 150 µm - Effective patient dose 14.4 µSv

Planmeca Ultra Low DoseUltra low dose image - Orthodontic case
Planmeca ProMax 3D Max - FOV Ø 85 x 50 mm. - Voxel size 400 µm - Effective patient dose 7.9 µSv

Planmeca Ultra Low DoseUltra low dose image - Orthodontic case
Planmeca ProMax 3D Max - FOV Ø 85 x 50 mm. - Voxel size 400 µm - Effective patient dose 4.0 µSv

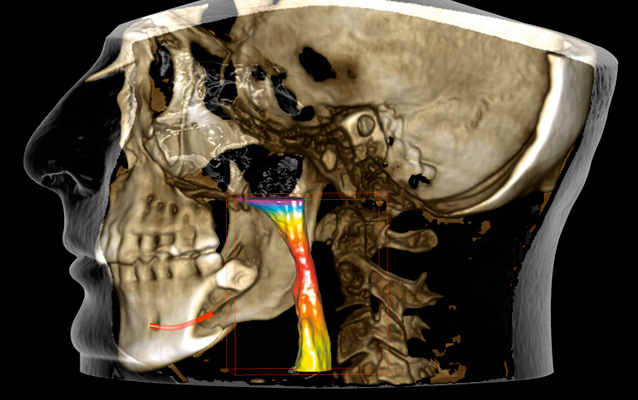

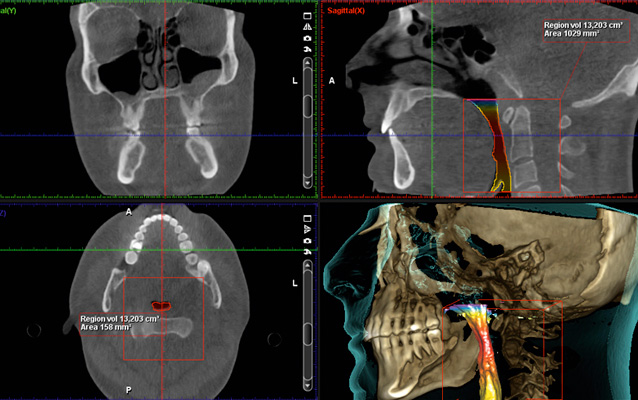

Planmeca Ultra Low DoseUltra low dose image - Airways
Planmeca ProMax 3D Max - FOV Ø 230 x 160 mm. - Voxel size 600 µm - Effective patient dose 21 µSV

Planmeca Ultra Low DoseUltra low dose image - Airways
Planmeca ProMax 3D Max - FOV Ø 230 x 160 mm. - Voxel size 600 µm - Effective patient dose 21 µSV

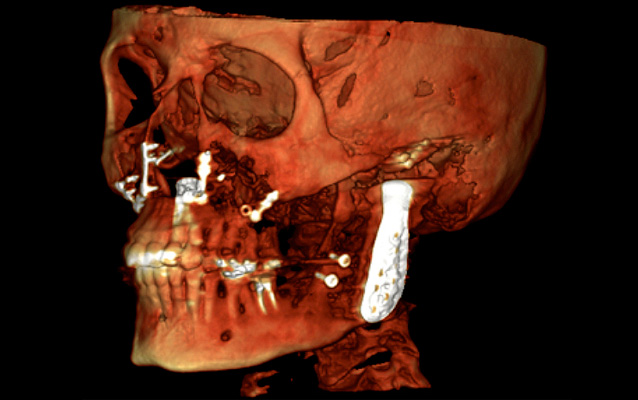

Planmeca Ultra Low Dose Ultra low dose image - Postoperative case
Planmeca ProMax 3D Max - FOV Ø 230 x 160 - Voxel size 600 µm - Effective patient dose 42 µSv

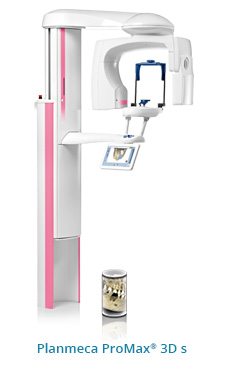

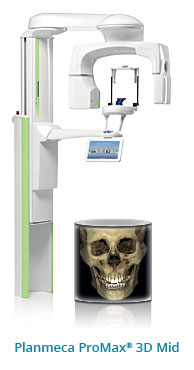

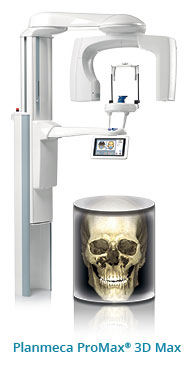

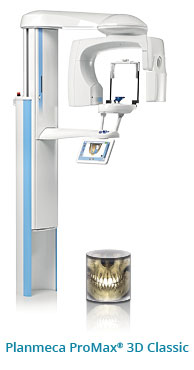

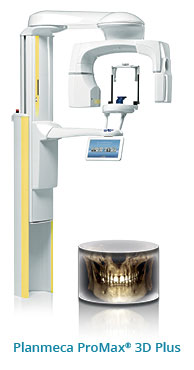

Planmeca ProMax® 3D family
Key features

Advanced technology:

  • Ideal resolutions and patient dose levels that always comply with the ALARA (As Low As Reasonably Achievable) principle
  • Optimal volume size and location for every clinical need
  • Special imaging protocols for dental and ENT applications

Effortless use:

  • Effortless patient positioning and unmatched comfort
  • True all-in-one X-ray units not only for 3D imaging, but 2D panoramic and cephalometric imaging as well
  • Easy to use for a smooth workflow
  • Planmeca Romexis® software
  • Mac OS and Windows support

Planmeca ProMax 3D family



Planmeca Romexis®
software for all images

Planmeca Romexis® is an advanced, easy-to-use software suite providing a rich set of tools to meet the imaging requirements set by any dental facility – from a small clinic to a large hospital. It supports the most versatile range of 2D and 3D imaging modalities.


Ease of operation

Our Planmeca ProMax® 3D units are known across the world for incredible ease of use and exceptional patient comfort.
A relaxed patient means a smooth imaging workflow and the best quality images.

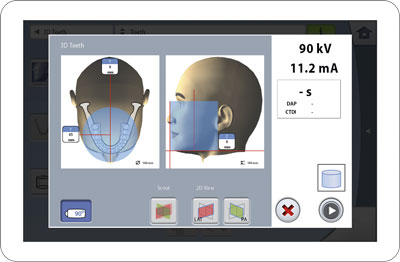

User-friendly control panel

  • Clear and straightforward graphical user interface guides you smoothly through the work process
  • Pre-programmed sites and exposure values for different image types and targets save you time and allow you to focus on your patients

User-friendly control panel

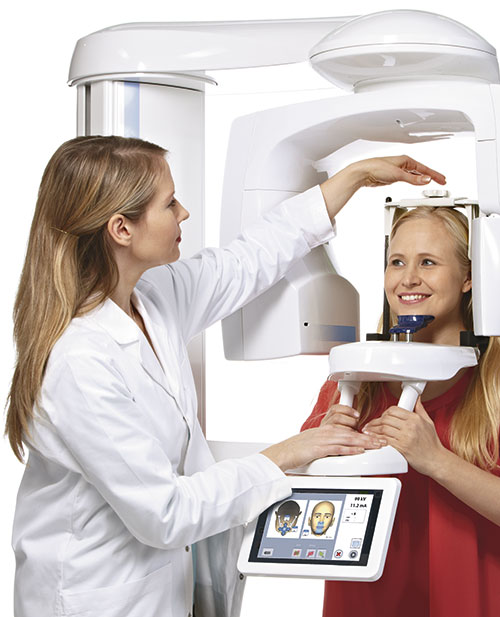

Open patient positioning

  • Effortless positioning with open-face architecture
  • Unrestricted view of your patient
  • No claustrophobic feeling for your patient
  • Fine adjustment using positioning lasers and joystick
  • Verify correct positioning with a scout image
  • Easy wheelchair accomodation with side-entry access

Unmatched patient support


Best image quality with optimal dose


Best image quality
with optimal dose

Pulsed X-ray radiography reduces the patient dose considerably and creates a stroboscopic X-ray effect. Together with the short rotation scan it eliminates artefacts, contributing to the exceptional image quality.

ROI for higher resolution images

The ROI (Region of Interest) reconstruction function can generate a new small voxel volume from the image data of a previously taken large voxel volume. This enables more precise diagnosis without the need for an additional radiation dose for the patient.

Best image quality with optimal dose

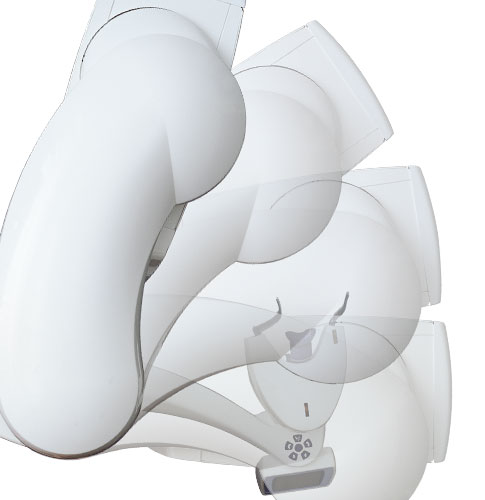

SCARA technology

SCARA technology

The precise, free-flowing, computer-controlled SCARA (Selectively Compliant Articulated Robot Arm) arm construction can produce any movement pattern required. This enables accurate and reliable volume positioning and volume diameter adjustment, reducing the amount of radiation your patients are exposed to.

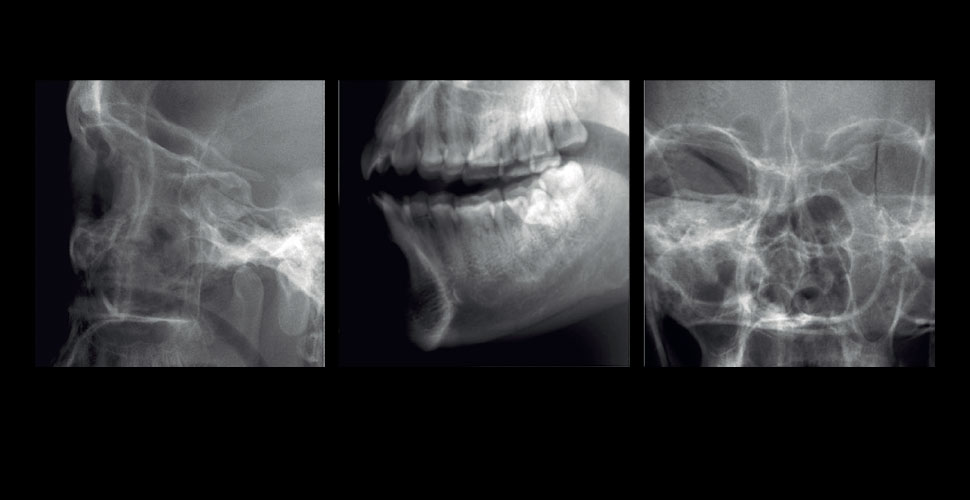

Scout images and 2D views help positioning and can even be used in preliminary diagnosis.

Scout images and 2D views help positioning and can even be used in preliminary diagnosis.

Easy imaging with ready-designed protocols

  • Imaging protocols designed for specific diagnostic tasks, areas, or target sizes
  • Appropriate volume size, resolution, and exposure values
  • Automatic selection and adjustment of the target position
  • Reduced volume sizes for child patients to prevent unnecessary radiation

Optimised imaging modes for different needs

  • Low dose mode takes the image with a minimal dose of radiation. Suitable for child patients in orthodontic studies. Voxel size 400 µm
  • Normal mode is the best choice for most common imaging needs. Voxel size 200 µm
  • High definition mode is designed for imaging of small objects, such as ear bones. Voxel size 150 µm
  • High resolution gives more detail, when necessary. Voxel size 100 µm
  • Endodontic mode offers the best resolution with the smallest size. Voxel size 75 µm


2D and 3D imaging with one sensor

Our advanced SmartPan™ imaging system uses the same 3D sensor also for 2D panoramic imaging.

2D and 3D imaging with one sensor

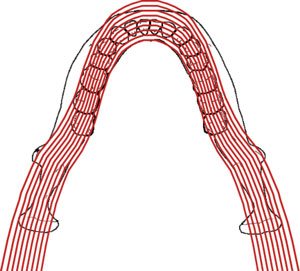

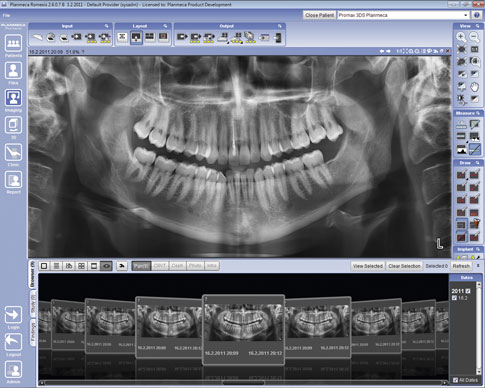

2D SmartPan™
Unique panoramic imaging

  • A unique system for 2D imaging
  • Uses the same 3D sensor for 2D panoramic imaging, eliminating the need to change sensors
  • Calculates 10 different panoramic curves in 2 mm shifts, automatically adjusting the sharpness to one layer
  • Users can browse between panoramic images and select the most suitable one for diagnosis

2D SmartPan

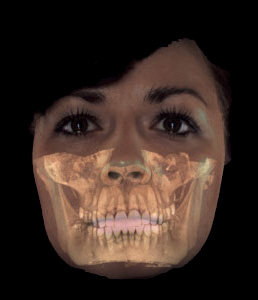

3D face photo

Planmeca ProFace® is an exclusive 3D face photo system available for all of our 3D X-ray units. This pioneering integrated system produces a realistic 3D face photo and CBCT image in a single imaging session. You can also take a separate 3D face photo without exposing your patient to any radiation.

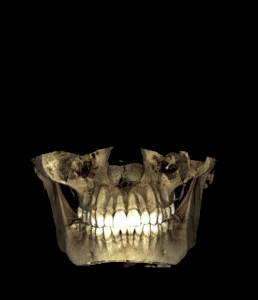

One imaging session generates both a 3D photo and a CBCT volumeOne imaging session generates both a 3D photo and a CBCT volumeOne imaging session generates both a 3D photo and a CBCT volume

Planmeca ProFace – the face in 3D

Designed to fulfil the most diverse diagnostic needs of today’s maxillofacial and dental professionals, Planmeca ProFace® is a highly effective tool for pre-operative planning and treatment follow-up. It’s also ideal for patient motivation and for sharing information with colleagues.

Read more about Planmeca ProFace 3D face photo option.


3D model scanning

Scan impressions and plaster casts with Planmeca ProMax 3D family units

You can use all X-ray units in the Planmeca ProMax® 3D family to scan both impressions and plaster casts – an exciting feature that was an industry first for our CBCT units. And with our advanced Planmeca Romexis® software, the digitised models are available immediately and stored for later use.

Scanning a plaster cast to digital model
Scanning a plaster cast to a digital model

Scanning an impression to a digital model
Scanning an impression to a digital model

Advantages of 3D model scanning

Digital models save space

3D digital models are stored in the Planmeca Romexis® database in standard STL format, which reduces the need to make or maintain physical plaster casts.

Create your virtual patient

The scanned 3D model can be superimposed on to CBCT data, creating a virtual patient and helping you with all your clinical and treatment planning needs. The combined data set provides an artefact-free model of your patient’s dentition including bone, crowns and soft tissue. This offers valuable new options for implant planning, surgical guide manufacturing, orthodontic purposes and orthognathic surgery.

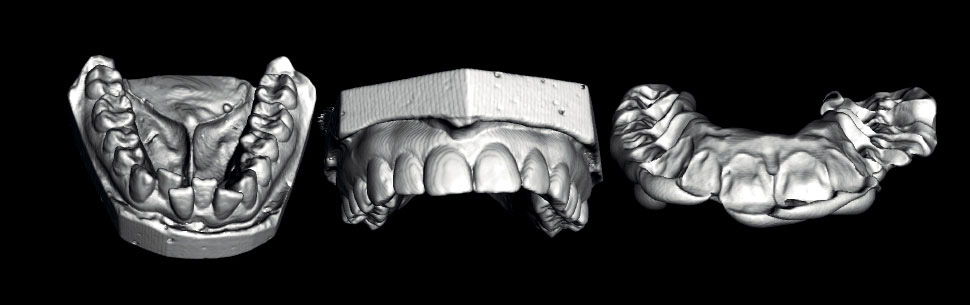

Scanned impressions of upper and lower arches and bite index in 3D

Scanned impressions of upper and lower arches and bite index in 3D.

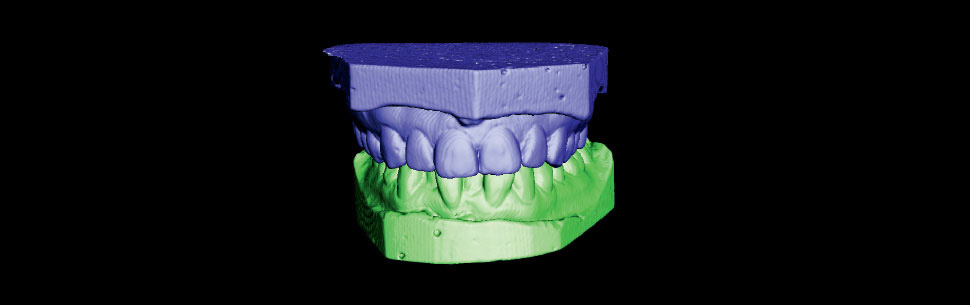

Upper and lower arch models in occlusion

Upper and lower arch models in occlusion. A useful tool for orthodontic treatment planning and patient progress follow-up.

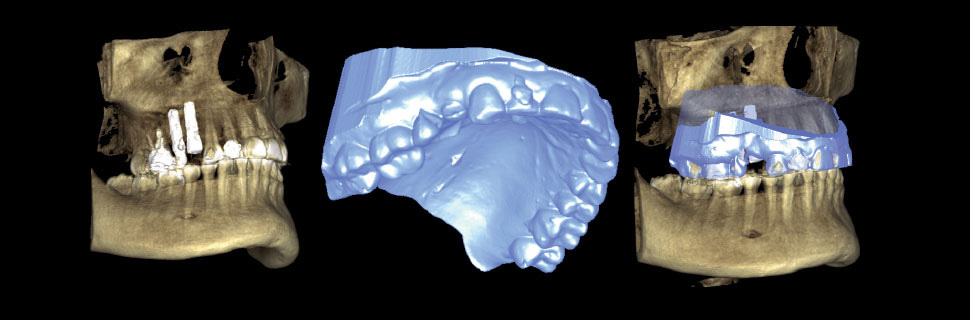

Superimposed CBCT and 3D model of upper jaw

Superimposed CBCT and 3D model of upper jaw. Measure, compare, and track changes in teeth movements.

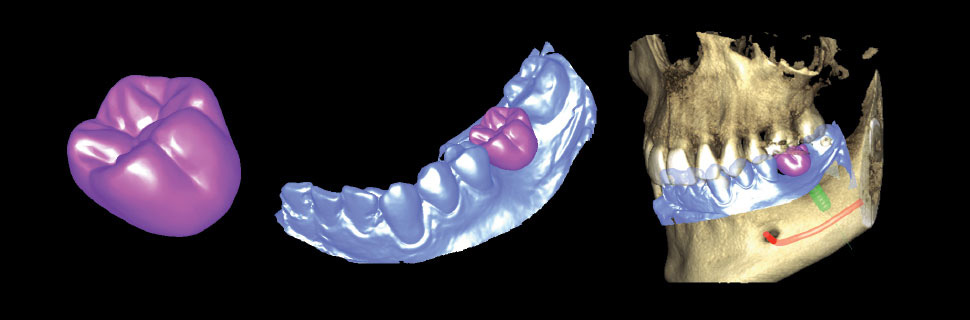

Crown, impression scan, and CBCT for more accurate implant planning

Crown, impression scan, and CBCT for more accurate implant planning.

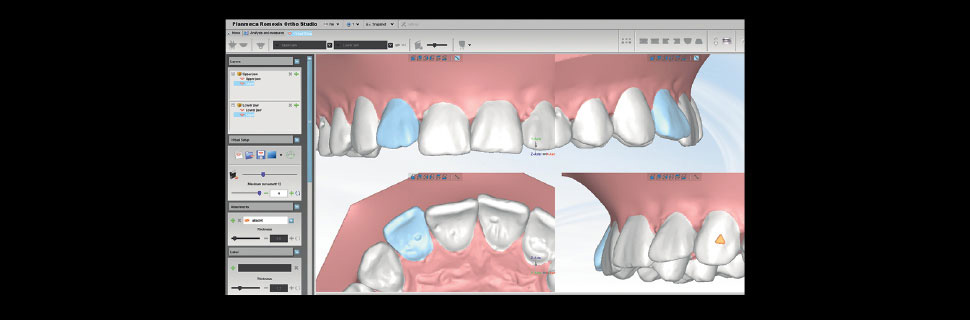

Analyse the STL data further in the Planmeca Romexis® 3D Ortho Studio module

Analyse the STL data further in the Planmeca Romexis® 3D Ortho Studio module, and then carry out a comprehensive dental cast analysis and create an orthodontic treatment plan.

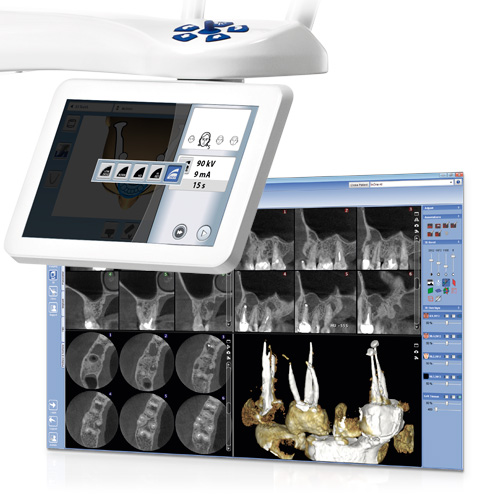

Endodontic imaging mode

Endodontic imaging mode for Planmeca ProMax® 3D family

We are proud to introduce a new imaging mode that is specially designed for endodontic studies. The new imaging mode is available for all new Planmeca ProMax® 3D family units and provides perfect visualisation of even the finest anatomical details.

Thanks to our intelligent Planmeca AINO™ noise removal and Planmeca ARA™ artefact removal algorithms, the result is noise-free and crystal-clear images. The new imaging mode is ideal for endodontics and other cases with small anatomical details, such as ears.

Learn more.


Stand out with colour

Complement the splendid design of your Planmeca ProMax® 3D X-ray unit by giving it a personal touch with your favourite colours.
Select the perfectly matching shades from our exquisite and inspiring collection and create the looks of your dreams!



PinkSkySunLimeSteel
