Technical specifications

Delivery system Over-the-patient delivery with balanced instrument arms
Over-the-patient delivery with hanging tube instruments
Side delivery with hanging tube instruments
Power requirements 100VAC–240VAC
Mains frequency 50/60 Hz
Frame Cast aluminium alloy
Water inlet pressure 300–900 kPa (45–130 psi)
Air inlet pressure 550–900 kPa (80–130 psi)
Weight Approx. 285 kg (633 lbs)
Mounting To be fixed on the floor
Electrical data Digital control system with upgradeable software, reliable electrical design and cabling
Colour Pearl (RAL 9016)
Topaz, Sapphire, Crystal

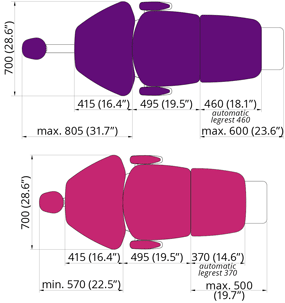

Fixed backrest

Sovereign Fixed backrest

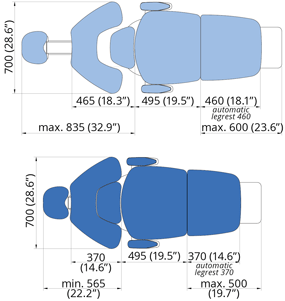

Motorised backrest

Sovereign Motorised backrest

Height from floor

Sovereign Drawing of dimensions

  Entry/exit position Horizontal position Trendelenburg position
A N/A max.1010 mm (39.8 in.) max. 410 mm (16.2 in.)
B min. 410 mm (16.2 in.) max. 980 mm (38.6 in.) max. 980 mm (38.6 in.)
C automatic legrest 370: min. 450 mm (17.7 in.)
automatic legrest 460: min. 520 mm (20.5 in.)		 max. 990 mm (39 in.) max. 990 mm (39 in.)
D Fixed position: 920 mm (36.2 in.)
E Fixed position: 1930 mm (76 in.)

Movements

Sovereign Drawing of movements

A left-right turning of unit ±120°
B turning of assistant element
C 240° chair swivel

Centerlines

Sovereign Drawing of dimensions

A centerline for left-right unit conversion
B chair centerline for left-hand unit
C chair centerline for right-hand unit
D outermost cuspidor position
E 360 (14.2”)
F 645 (25.4”)
G 530 (20.9”)
