Endodontic imaging mode

Endodontic imaging mode for Planmeca ProMax® 3D family

We are proud to introduce a new imaging mode that is specially designed for endodontic studies. The new imaging mode is available for all new Planmeca ProMax® 3D family units and provides perfect visualisation of even the finest anatomical details.

Thanks to our intelligent Planmeca AINO™ noise removal and Planmeca ARA™ artefact removal algorithms, the result is noise-free and crystal-clear images. The new imaging mode is ideal for endodontics and other cases with small anatomical details, such as ears.

Endodontic imaging mode

Extremely high resolution, voxel size 75µm – perfect for the finest anatomical details
Available for the following volume sizes (including pediatric sizes):

  • ProMax 3D s Ø50x40 mm
  • ProMax 3D Classic Ø40x50 mm
  • ProMax 3D Plus Ø40x50 mm
  • ProMax 3D Mid Ø40x50 mm
  • ProMax 3D Max Ø50x55 mm

Planmeca AINO™ Adaptive Image Noise Optimiser

  • An intelligent noise filter that reduces noise in CBCT images while preserving valuable details
  • Analyses exposure data during reconstruction and adaptively differentiates noise and fine details
  • Planmeca AINO™ is enabled from Planmeca Romexis® 3D image capturing dialog according to the patient case and diagnostic need. The original image is stored in the reconstruction PC (100 exposure buffer) and can be recalled in Planmeca Romexis.
  • Improves image quality in the endodontic imaging mode where noise is inherent due to extremely small voxel size. It is also especially useful when using the Planmeca Ultra Low Dose™ protocol, where noise is induced by the particularly low dose.
  • Planmeca AINO allows reducing exposure values also in all other imaging modes by reducing noise.

NB. Planmeca AINO filtering is performed on reconstruction PC GPU (Graphics Processing Unit), which is only available in Dell T3600 reconstruction PC.

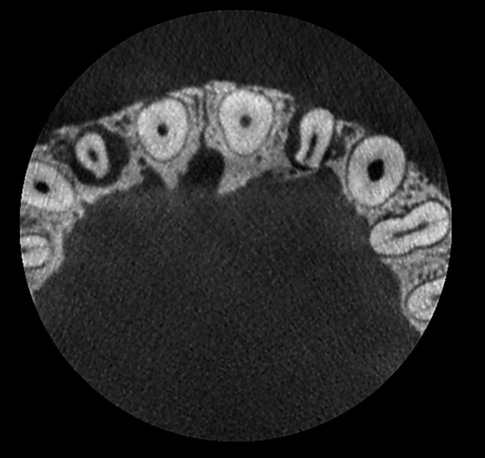

Without noise removal

Planmeca AINO - without noise removal

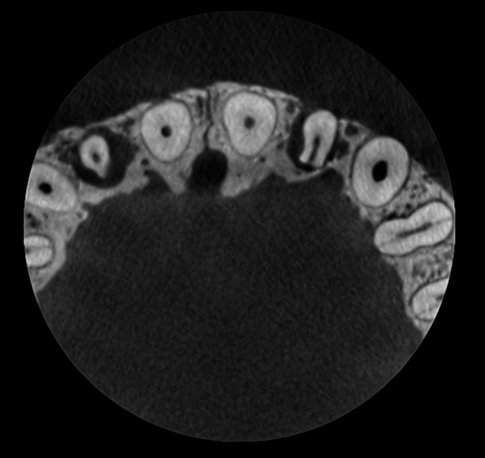

With Planmeca AINO noise filter

Planmeca AINO - with noise filter

Planmeca ARA™ Artefact Removal Algorithm

Metal restorations and root fillings in the patient’s mouth can cause shadows and streaks in CBCT images. The intelligent Planmeca ARA™ system removes these artefacts efficiently from Planmeca ProMax® 3D images.

  • Removes streaks and artifacts efficiently
  • Based on a heuristic model
  • The result of extensive scientific research and a vast amount of clinical patient data
  • Artefact removal is enabled from Planmeca Romexis® 3D image capturing dialog according to the patient case (choose from low, medium or high). It can be performed multiple times at different levels using original exposure data.

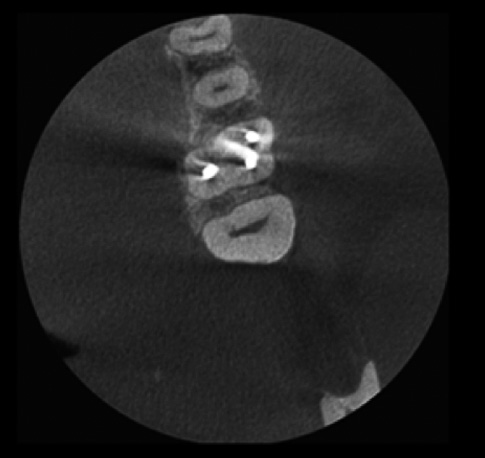

Without artefact removal

Planmeca ARA - without artefact removal

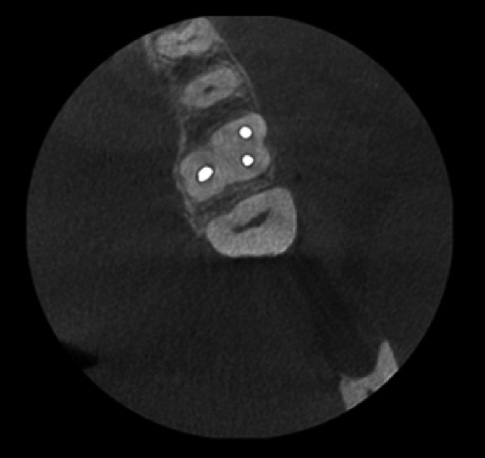

With Planmeca ARA artefact removal algotrithm

Planmeca ARA - with artefact removal algotrithm


Planmeca ProMax 3D s Ø50x50 mm, voxel size 75µm

Applications of CBCT images in endodontic cases

  • Assessment of endodontic treatment complications
  • Diagnosis of periapical pathosis
  • Root canal system anomalies
  • Determination of root curvature
  • Trauma diagnosis: root fractures, luxation, displacement of teeth and alveolar fractures
  • Localisation  of root resorption
  • Determination of exact root apex location in presurgical planning
  • True measurements


Planmeca ProMax 3D Mid Ø40x50 mm, voxel size 75µm
