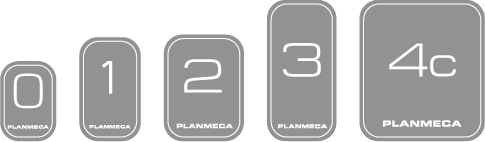

0 |
1 |
2 |
3 |
4c |
| Imaging plate size |
22 x 31 mm
(0.87 x 1.22 in.) |
24 x 40 mm
(0.94 x 1.57 in.) |
31 x 41 mm
(1.22 x 1.61 in.) |
27 x 54 mm
(1.06 x 2.13 in.) |
48 x 54 mm
(1.89 x 2.13 in.) |
| Pixel Matrix, Standard |
343 x 484 px |
375 x 625 px |
484 x 640 px |
421 x 843 px |
750 x 843 px |
| Pixel Matrix, High |
628 x 885 px |
685 x 1143 px |
886 x 1171 px |
771 x 1542 px |
1370 x 1542 px |
| Selectable pixel size, Standard |
64 µm |
| Selectable pixel size, High |
35 µm |
| Readout time |
4.1 ~ 7.2 sec |
| Resolution |
Data Capture: 16-bits per pixel, 65 000 greytones |
| Eraser |
Embedded |
| Dimensions (H x W x D) |
265 x 120 x 318 mm (10.4 x 4.7 x 12.5 in.) |
| Weight |
5.5 kg (12.1 lbs) |
| System configuration |
Tabletop |
| Interface |
USB 2.0 high speed (480 Mbps) / Ethernet (100 Mbps) |
