Imaging programs

Standard: Basic panoramic programs Standard panoramic
Lateral TMJ
PA TMJ
PA Sinus
Standard  Child (Paediatric) mode for each standard and optional program to reduce the dose
Optional  Horizontal and vertical segmenting for panoramic program
Optional  Bitewing
Optional: Advanced panoramic programs



 Interproximal panoramic
Orthogonal (perio) panoramic
Lateral-PA TMJ
Lateral multiangle TMJ
Lateral non rotational sinus
Cross-sections
Bitewing

Technical data

Generator Constant potential, resonance mode high frequency 60–80 kHz
X-ray tube D-058SBR
Focal spot size
0.5 x 0.5 mm (IEC 336)
SID
480 mm (19 in.)
Total filtration min. 2.5 mm Al eq.
Anode voltage 60–70 kV
Anode current 2–7 mA DC
Exposure time 2–10 s
Line voltage 100–132 V~ 50/60 Hz,
180–240 V~ 50 Hz
Regulation ±10 % (automatic)
Line current 8–16 A
Power uptake max: 850 W
Chin rest level 95–178 cm (37.4–70 in.)
Colour White (RAL 9016)
Weight 67 kg (148 lbs)

Physical space requirements

Width 74 cm (38 in.)
Depth 103 cm (41 in.)
Height 223 cm (88 in.)

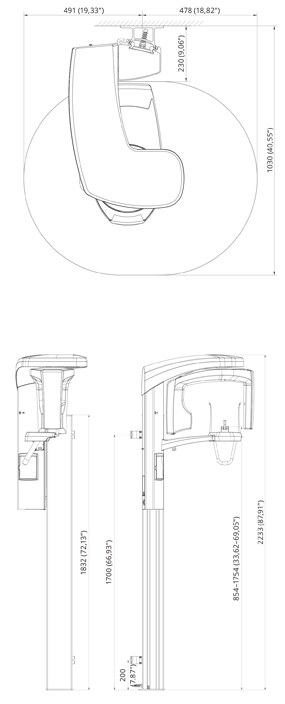

 Dimensions

ProOne Drawing of dimensions
